Create+ | Still Spirits | Thermowell 90° Elbow Section

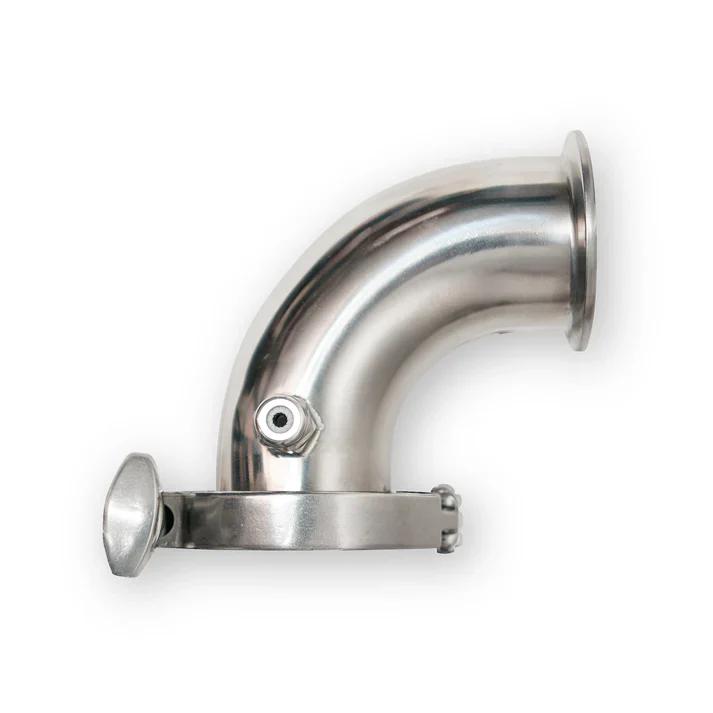

The Create+ Thermowell 90° Elbow Section is designed for use with 2” tri-clamp compatible distilling systems. The stainless steel 90° elbow section with a thermowell integrates into a modular distilling system, redirecting vapour flow while enabling temperature monitoring.
KEY FEATURES:
- Connects to 2" tri-clamp distilling accessories
- Integrated thermowell
- 304 grade stainless steel construction
- High temperature resistant food grade silicone
INSTRUCTIONS: Insert the 90° Elbow Section into your distilling system, ensuring the silicone gasket is placed in the tri-clamp connection. Secure with a tri-clamp.
CLEANING BEFORE USE: Rinse all components with fresh, clean water before the first distillation run.
CLEANING AFTER USE: If needed, thoroughly rinse the section to remove any wash or debris. Use a non-scented brewery cleaner and a soft brush to remove any stubborn debris.
CAUTION: After distillation is complete, the surface will be very hot. Allow to cool before handling.
DISCLAIMER: Please note that in certain countries alcohol distillation and the possession of distilling equipment is illegal and permits/licenses may be required. For guidance or advice, contact your relevant local authorities.

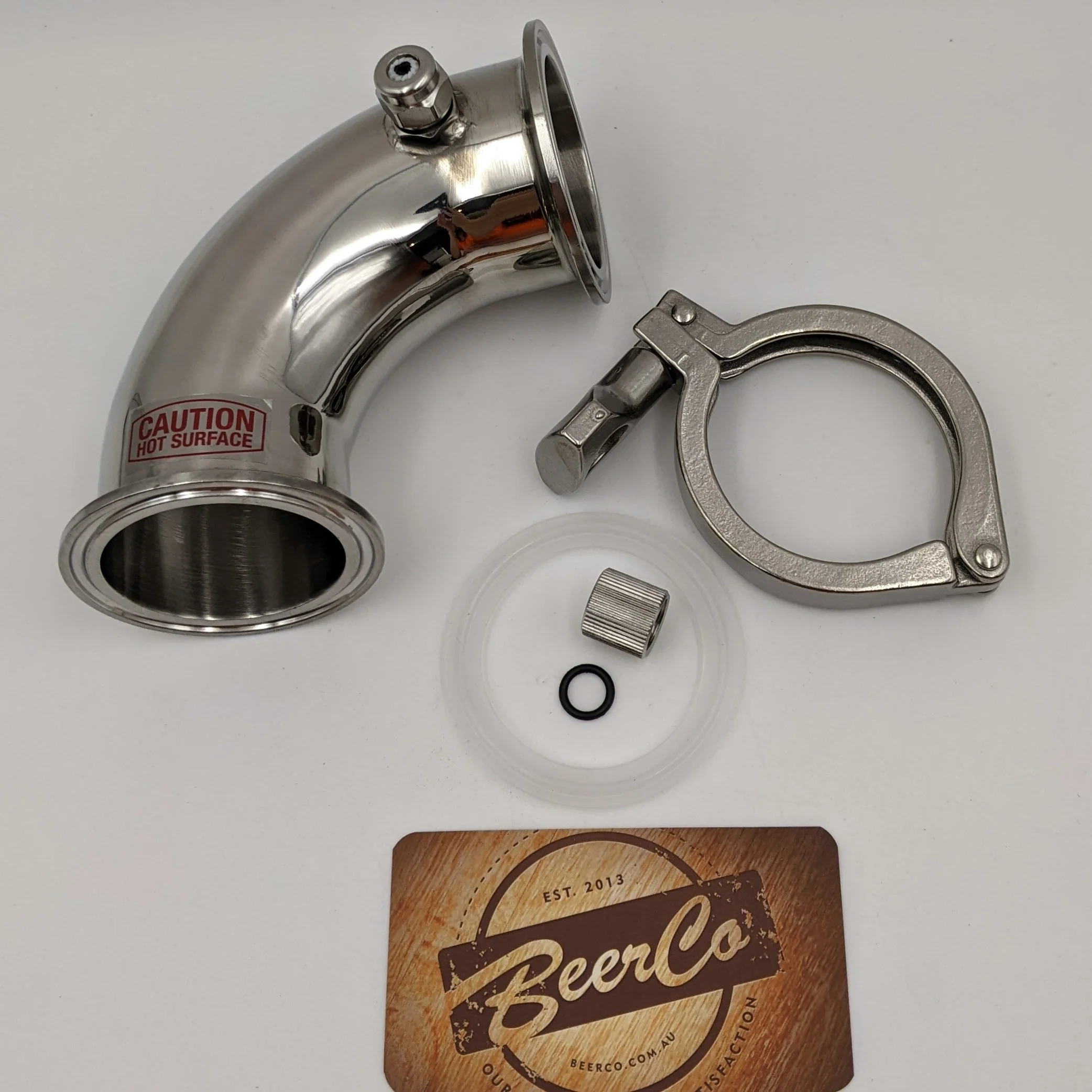

WHAT'S INCLUDED IN THE BOX:
- Thermowell 90° Elbow Section
- 2" Tri-clamp
- 2" Silicone Gasket
- Black O-ring Gasket
- Thermowell Stainless Steel Cap
SPECIFICATIONS:
- Dimensions: H 11.3 cm x W 11.3 cm x D 5.1 cm
- Thermowell compatible with Ø5 to 6mm probes
- Weight: 0.297 kg
NOTE: The Still Spirits Boiler Lid and Alembic Dome are designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. The lid and dome are reasonably flexible and sturdy enough to fit components that are within the following specifications:
- A total column & condenser height up to 1.1 m (3.6 ft) from the lid or dome.
- A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg (4.4 lbs) of off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6”) to the main column.
We recommend external support if:
- Your column & condenser exceeds the above specifications.
- The lyne arm is not vertical but angled or perpendicular running away from the column, resulting in significantly distant off-centre weight.
- If the column & condenser is noticeably leaning.
Compatible Modular Items:
-
Create+ | Sight Glass | Botanical Basket Set
-
Create+ | Sight Glass Bubble Plate
-
Create+ | Still Spirits | 90° Elbow Section
-
Create+ | Still Spirits | Vented Collection Cup
-
Create+ | Still Spirits | Multi-Tube Condenser
-
Grainfather | Distilling Lid T500 Condenser Attachments Kit
-
Grainfather | Distilling Lid T500 Alembic Attachment Kit
Original: $30.71
-65%$30.71
$10.75More Images
